 Model:F3M
 PriceRMB:3380
 The rated capacity:350kg
 The rated voltage:220v
 Rated power:1.5KW
 Rated frequency:50HZ
 Length of rope:30m
 Wire rope diameter:5MM
 self-reverence:72kg
 Indoor height of  installation:1.5M-3.2M
 Out of the window:1.15M
 Withdraw window length:0.45M
 The minimum work space:0.40M
 Since most weight:700公斤
 Maximum lifting height:100M
 As remote distance:100M
 This product patent number:  200820079886.3
 Price level index:five-star
Applicable scope:

 Change hoisting machine in a narrow window, and can use the space.And to avoid the rotating arm too short distance from out of the question.This is the other small crane possesses the essence and the difference.

F3M model number, Small loop wheel machine. Use in indoor. Price:RMB3380 first.2007 Year.Most selable Small loop wheel machine..Trait; Extend window distance long ,Belt long range remote control, Power oldest, Velocity quick .Total 350kg Small loop wheel machine,cost performance maximal .Main characteristics of long distance out deep, saddles, remote power, speed. Cost-effective mobile:86 13466697968
 Model:F3M
 PriceRMB:3380
 The rated capacity:350kg
 The rated voltage:220v
 Rated power:1.5KW
 Rated frequency:50HZ
 Length of rope:30m
 Wire rope diameter:5MM
 self-reverence:72kg
 Indoor height of  installation:1.5M-3.2M
 Out of the window:1.15M
 Withdraw window length:0.45M
 The minimum work space:0.40M
 Since most weight:700kg
 Maximum lifting height:100M
 As remote distance:100M
 This product patent number:  200820079886.3
 Price level index:five-star
Applicable scope:

 Change hoisting machine in a narrow window, and can use the space.And to avoid the rotating arm too short distance from out of the question.This is the other small crane possesses the essence and the difference.

  mobile:86 13466697968
 Model:F480G
 PriceRMB:4800
 The rated capacity:480kg
 The rated voltage:220v
 Rated power:2.0KW
 Rated frequency:50HZ
 Length of rope:30m
 Wire rope diameter:5MM
 self-reverence:110kg
 Indoor height of  installation:1.5M-3.2M
 Out of the window:0.95M
 Withdraw window length:0.65M
 The minimum work space:0.65M
 Since most weight:1000kg
 Maximum lifting height:200M
 Stents heavy:75kg
 This product patent number:  200520008736.X
 Price level index:five-star
Applicable scope:

 Suitable for support (outdoor) can also be used for indoor hoisting and places, and can be attached with the material plane combination for outdoor engineering, outdoor type. Combined with the scaffold for large projects.

F480G indoor and cutdoor common model. Selling price;RMB: 4800.00元.Lift weight 480kg mobile:86 13466697968

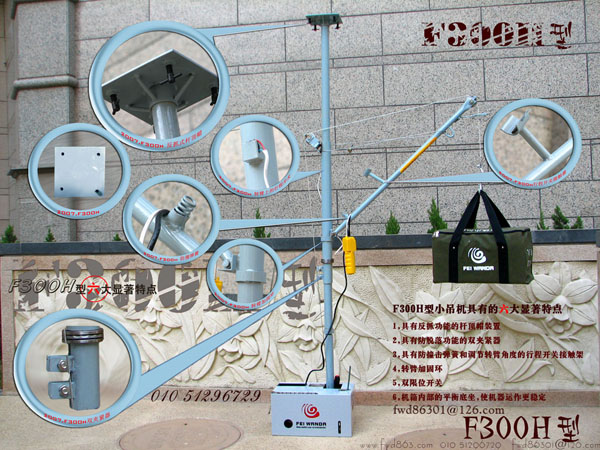

 Model:F300H
 PriceRMB:2680
 The rated capacity:300kg
 The rated voltage:220v
 Rated power:1.3KW
 Rated frequency:50HZ
 Length of rope:30m
 Wire rope diameter:5MM
 self-reverence:70kg
 Indoor height of  installation:1.5M-3.2M
 Out of the window:0.95M
 Withdraw window length:0.65M
 The minimum work space:0.65M
 Since most weight:600kg
 Maximum lifting height:100M
 Stents heavy:31kg
 This product patent number:  200720103304.6
 Price level index:four-star
Applicable scope:

 Suitable for support (indoor locations hoisting and material, and can be used in combination with the attached frame, outdoor type outdoor engineering. Combined with the scaffold for large projects.

F300H model number, Small loop wheel machine. Use in indoor. Price:RMB3180 first .2007 Year.Most selable Small loop wheel machine .Trait;minicase amd safety .Total 300 kg Small loop wheel machine most safety. mobile:86 13466697968
 Model:FZ200a
 PriceRMB:4680
 The rated capacity:200kg
 The rated voltage:220v
 Rated power:1.3KW
 Rated frequency:50HZ
 Length of rope:27m
 Wire rope diameter:5MM
 self-reverence:120kg
 Indoor height of  installation:1.5M-3.2M
 Out of the window:1.5-4.0M
 Withdraw window length:0.1M
 The minimum work space:0.35M
 Since most weight:400kg
 Maximum lifting height:100M
 Stents heavy:71kg
 This product patent number:  200720173508.7
 Price level index:four-star
Applicable scope:

 In 2009, the development of new type of small crane rails straight. Main characteristics in 30 centimeters wide. Can use small Windows, deep within the range 1.5 meters, hanging outside the window to walk, automatic, fast. Is the direct rail systems.common rail small crane dimension of a qualified production house. Use safe and reliable, stable performance. Complete function

FZ200a model number, Small loop wheel machine. Use in indoor. Price:RMB4680 first.2008 Year.Most selable Small loop wheel machine..Trait; Extend window distance long ,Belt long range remote control, Power oldest, Velocity quick .Total 200kg Small loop wheel machine,cost performance maximal mobile:86 13466697968

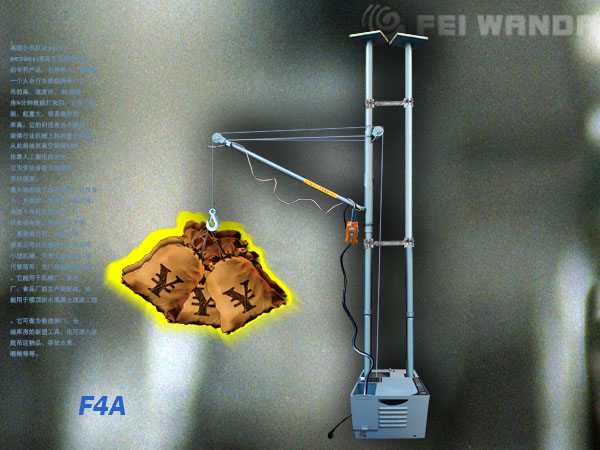

 Model:F4A
 PriceRMB:3280
 The rated capacity:400kg
 The rated voltage:220v
 Rated power:1.5KW
 Rated frequency:50HZ
 Length of rope:30m
 Wire rope diameter:5MM
 self-reverence:90kg
 Indoor height of  installation:1.5M-3.2M
 Out of the window:0.95M
 Withdraw window length:0.65M
 The minimum work space:0.65M
 Since most weight:800kg
 Maximum lifting height:100M
 Stents heavy:41kg
 This product patent number:  200620119277.7
 Price level index:four-star
Applicable scope:

 Suitable for support (indoor locations hoisting and material, and can be used in combination with the attached frame, outdoor type outdoor engineering. Combined with the scaffold for large projects.

F4A model number, 400kg indoor (To export special )Function; Stable. very safety 。 Price:RMB3280 first mobile:86 13466697968
 Model:F300K
 PriceRMB:3480
 The rated capacity:300kg
 The rated voltage:220v
 Rated power:1.3KW
 Rated frequency:50HZ
 Length of rope:30m
 Wire rope diameter:5MM
 self-reverence:70kg
 Indoor height of  installation:1.5M-3.2M
 Out of the window:0.95M
 Withdraw window length:0.65M
 The minimum work space:0.65M
 Since most weight:600kg
 Maximum lifting height:100M
 Stents heavy:31kg
 This product patent number:  200520008736.X
 Price level index:four-star
Applicable scope:

 Suitable for support (outdoor) place hoisting and material, and can be used in combination with the attached frame, outdoor type outdoor engineering. Combined with the scaffold for large projects.

F300Kindoor and cutdoor common model. Selling price;RMB: 3480.00元.Lift weight 300kg mobile:86 13466697968
 Model:F480G
 PriceRMB:4800
 The rated capacity:480kg
 The rated voltage:220v
 Rated power:2.0KW
 Rated frequency:50HZ
 Length of rope:30m
 Wire rope diameter:5MM
 self-reverence:110kg
 Indoor height of  installation:1.5M-3.2M
 Out of the window:0.95M
 Withdraw window length:0.65M
 The minimum work space:0.65M
 Since most weight:1000kg
 Maximum lifting height:200M
 Stents heavy:75kg
 This product patent number:  200520008736.X
 Price level index:five-star
Applicable scope:

 Suitable for support (outdoor) can also be used for indoor hoisting and places, and can be attached with the material plane combination for outdoor engineering, outdoor type. Combined with the scaffold for large projects.

F3N model number, Small loop wheel machine mobile:86 13466697968
